What can sensors detect?
All Dynalite sensors support multiple functions at the same time. This enhances efficiency and provides more information to Dynalite’s headend software and/or third-party systems on the local conditions.
The three core functions of all Dynalite sensors are:
Read more about our sensors
Learn about our sensors
Motion detection
Dynalite sensors determine occupancy by sensing motion across the sensor’s
scan area. The sensor can send control commands based on this data.
Dynalite offers two types of motion detection sensors:
Passive infrared (PIR) detects changes in the temperature of objects within scan range. This requires a line of sight to the occupant.
Ultrasonic sensors actively transmit a high-frequency soundwave, then measures changes in the returning echo to determine occupancy. This provides some detection around obstacles and corners.
Light level
Local light level detection and regulation ensures comfortable, balanced lighting across any environment.
The sensor uses real-time lux measurement to compensate for factors such as reduced brightness from older lamps, daylight coming
in through windows and skylights, or
other external light sources.
Instead of using a fixed threshold point, Dynalite sensors feature industry-leading granularity in lux measurement, enabling finely tuned responses to changing lighting conditions.
IR receive
Dynalite sensors receive RC5 IR commands from any compatible handheld remote, including:
Network sign-on for device identification during commissioning.
Preset scene selection.
Ramping light levels or temperature setpoint.
Triggering preprogrammed actions, including control of third-party devices connected to the Dynalite system such as motorized blinds and projector screens.
Filters
Multifunction Sensor
DUS360CR

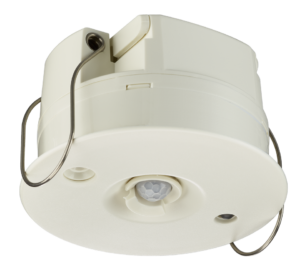

The Philips Dynalite DUS360CR is a recess mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
Multifunction Sensor
DUS360CR-DA

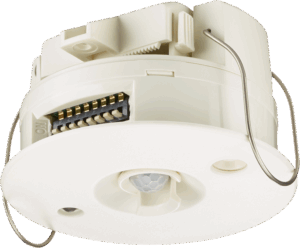

The Philips Dynalite DUS360CR-DA is a recess mountable 360 degree motion sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into the one device. The Philips Dynalite DUS360CR-DA is a component of the EcoSet system and is a switch-settable sensor with time-out, designed to allow intelligent control of luminaires in combination with the DMRC210DA-RJ12 relay controller.
Multifunction Sensor
DUS360CS

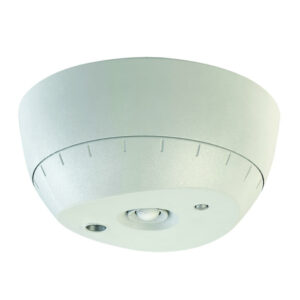

The Philips Dynalite DUS360CS is a surface mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as hotels, restaurants and homes.
Multifunction Sensor
DUS804CS-UP

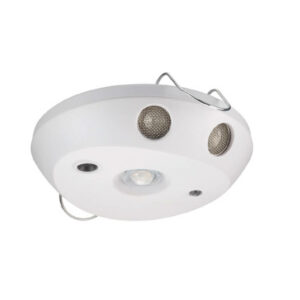

The Philips Dynalite DUS804CS-UP is a surface mountable 360 degree multifunction sensor that combines ultrasonic (UP), motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as offices, lecture theaters and homes.
Multifunction Sensor
DUS30-LHB-D
The Philips Dynalite DUS30LHB-D is a 30 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The sensor uses the DALI protocol for power and communications to a network control system, eliminating the need for additional network field wiring. This sensor is useful for long-range detection.
Multifunction Sensor
DUS90-WHB-D
The Philips Dynalite DUS90WHB-D is a 90 degree multifunction sensor that combines motion detection (PIR) and ambient light level detection (PE) in one device. The sensor uses the DALI protocol for power and communications to a network control system, eliminating the need for additional network field wiring. This is a wide angle, general purpose sensor.
