Wireless operation
Connects seamlessly to the Dynalite system via Zigbee
Mains powered
Easy installation and wiring, with no batteries to maintain or service.
Motion detection feature
Adjusts lighting in response the presence or absence of motion.
Ambient light level regulation
In applications where precise, consistent lighting is critical, the PE function measures ambient levels and adjusts artificial light accordingly.

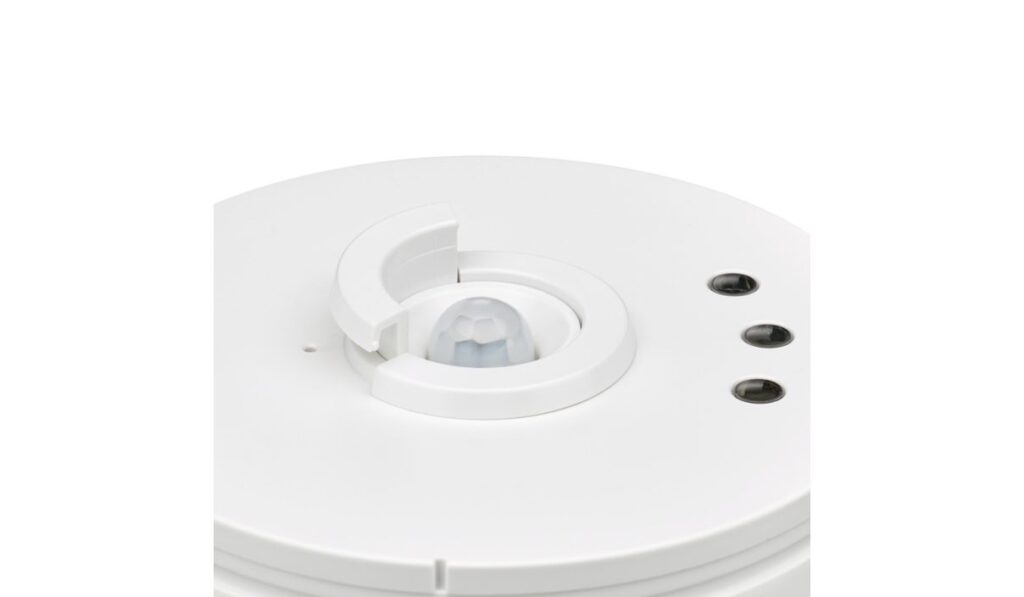

Segmented click-up bezel
Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
Corridor hold
Links corridor areas with adjacent rooms so corridor remains lit while occupancy is detected in adjacent rooms
Electrical
- Supply Voltage 230 VAC 50/60Hz
- Supply Current 1.09 mA
- IEC Overvoltage Category II – TBC
Motion Detection (PIR)
- Sensor Passive infrared
- NOTE: PIR detection requires a temperature difference between the subject and background surfaces of at least 4°C (7.2°F)
Light Detection (PE)
- Lux Range 1-2,000 lux
Control
- Supported Protocols:
- Zigbee
- Bluetooth (for pairing)
- User Controls:
- Infrared (RC5 IR remote control)
- 1 x hardware reset switch
- Indicators:
- 1 x motion LED (red)
- 1 x vacant LED (green)
Wireless Connectivity
- Protocols:
- BLE SIG
- Zigbee
- Frequency – 2.4GHz (IEEE 802.15.4)
- Antenna Type – Internal
- Range
- Zigbee: 15 m (line of sight)
- Bluetooth: 10 m (line of sight)
