PDRDE

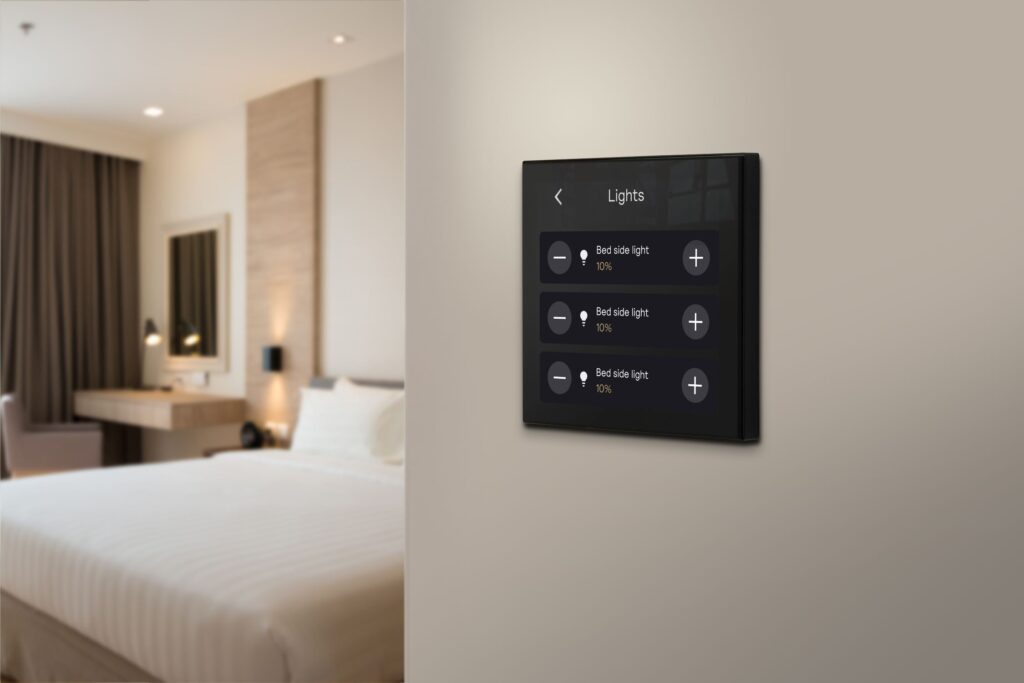

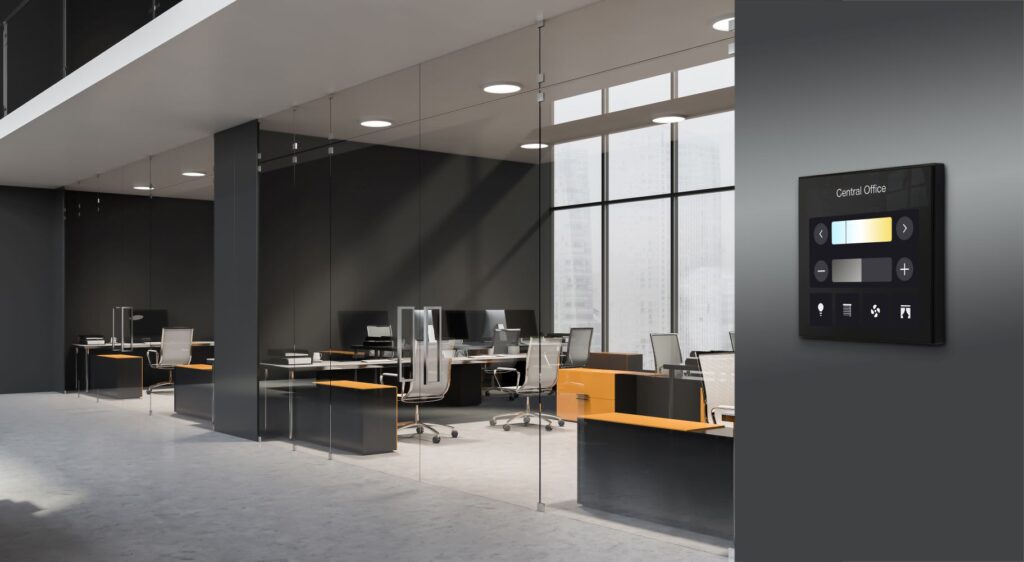

Revolution Display

Contemporary touchscreen user interface

The Philips Dynalite Revolution Display features a sleek, contemporary design and dynamically detects and responds to user presence. The full-colour capacitive touchscreen display can perform a wide variety of local and site-wide control functions.

Read More

Key Features

User proximity detection

The user interface detects an approaching user and lights up to encourage interaction, then dims automatically as they move away to reduce light pollution.

Colour touchscreen display

Provides at-a-glance system information with intuitive, easily understandable control options.

Supplied as two components

The application module includes the display and mounting plate. The communication module (DACM) contains logical and network functions and can be programmed off-site to enable commissioning prior to application module installation.

64-channel DMX Tx support

Can be factory-set to DMX instead of DyNet, to communicate directly with DMX fixtures.

Temperature and humidity sensors

Revolution Display provides the Dynalite system with real-time information on the environment, which can inform HVAC setpoint and/or energy management strategies.

Custom controls

Revolution Display can store up to 16 pages of custom-built controls. In addition to lights, users can also control other building systems such as drapery and climate control.

Visual configuration

Easily design Revolution Display using our graphical commissioning tool within System Builder.

  • The Revolution Euro range is suitable for, but not limited to, European, Middle Eastern, African and Asian markets.

Product Guides & Documentation

User Interfaces (EU) User Interfaces (EU)
User Interfaces (EU)
PDRDE Installation Instructions PDRDE Installation Instructions
PDRDE Installation Instructions
PDRDE Spec Sheet PDRDE Spec Sheet
PDRDE Spec Sheet
CE
PDRxE EU Declaration of Conformity
UKCA
PDRxX UKCA Declaration of Conformity

More User Interfaces

View All
Revolution Display Revolution Display
Revolution Display
The Philips Dynalite Revolution Display features a sleek, contemporary design and dynamically detects and responds to user presence. The full-colour capacitive touchscreen display can perform a wide variety of local and site-wide control functions.
User Interface Communication Module User Interface Communication Module
User Interface Communication Module
UI Demo Board UI Demo Board
UI Demo Board
The PD-UI-DemoBoard provides an easily transportable all-in-one showcase of Philips Dynalite button panel UIs and finishes. Use the board as a basic display, or add communication and power modules for live demonstrations.

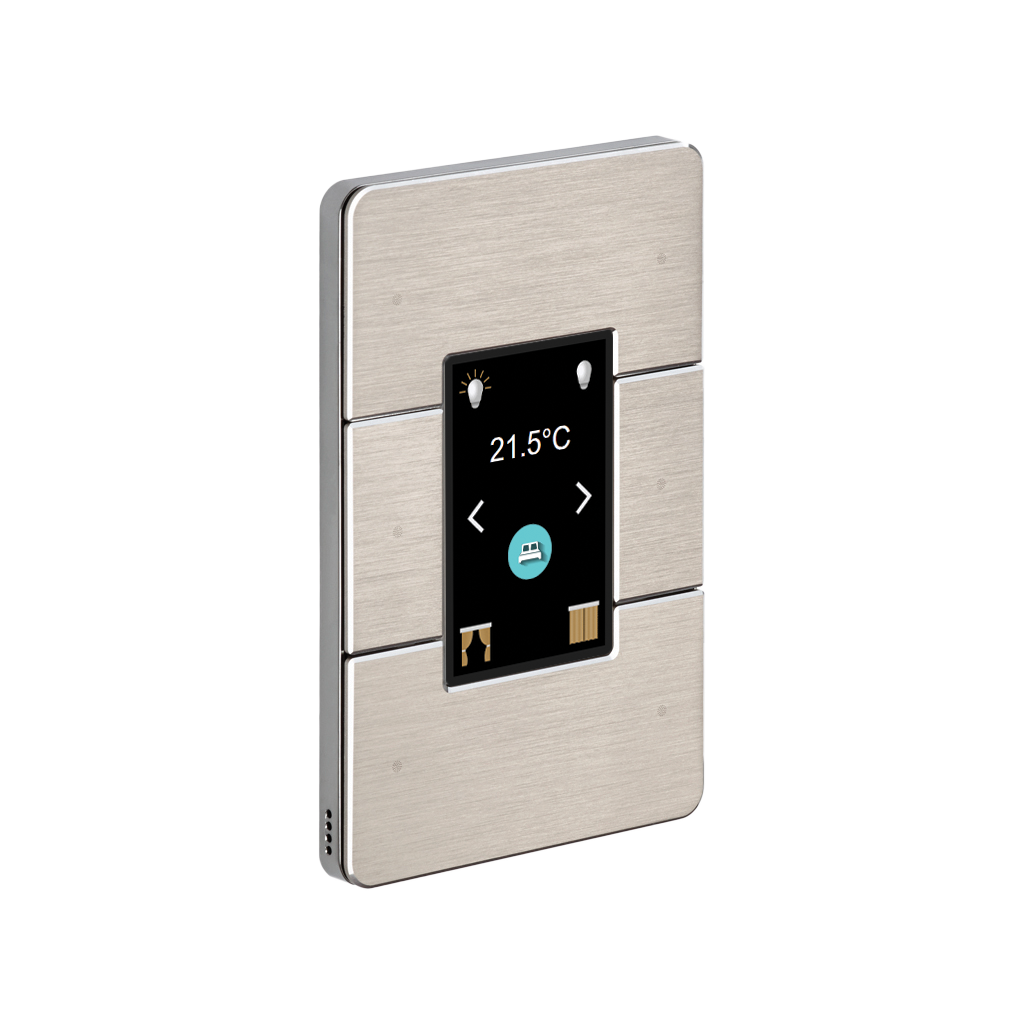

Antumbra Display
