PD-UI-NA-DemoBoard

UI Demo Board

Versatile design, unrivalled functionality

The PD-UI-DemoBoard provides an easily transportable all-in-one showcase of Philips Dynalite button panel UIs and finishes. Use the board as a basic display, or add communication and power modules for live demonstrations.

Read More

Key Features

Antumbra NA samples

Including 3x Antumbra Touch (capacitive touch control in black, white, and silver), 3x Antumbra Button (two/four/six-button variants with various finishes), and 1x Antumbra Display.

Revolution NA samples

3x Revolution NA including two/four/eight-button variants with mix-and-match button and frame finishes, and RGB backlighting.

DUS360CR multifunction sensor

360° motion detection, lux level monitoring, and IR control.

Fascia samples

See and feel our growing range of additional finishes for Antumbra Button and Antumbra Display.

Button labelling examples

All UI buttons are labelled with text and icons created in the Dynalite Design Studio Online Configurator.

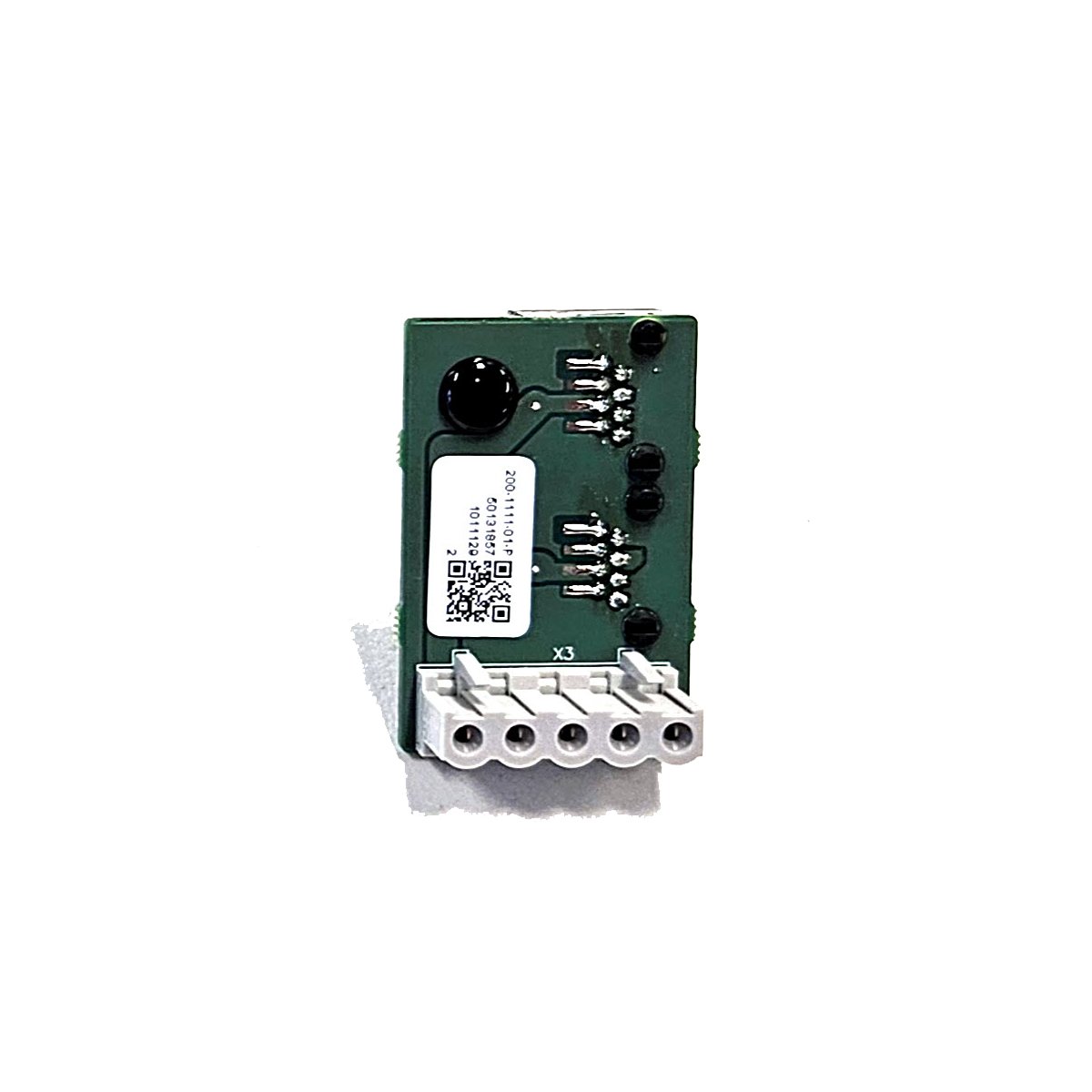

Power supply and communication modules sold separately

Add one DACM per Antumbra/Revolution and a power supply to enable live demonstrations of each device’s capabilities.

Configuration files available on request

Our system experts have everything you need to get your live demonstrations up and running with zero hassle. Contact your Philips Dynalite representative for more information.

Product Guides & Documentation

User Interfaces (NA/ANZ) User Interfaces (NA/ANZ)
User Interfaces (NA/ANZ)
CE
PD-UI-Demo EU Declaration of Conformity
UKCA
PD-UI-Demo UKCA Declaration of Conformity
Certs
PD-UI-NA-DemoBoard Spec Sheet
