Field effect technology
The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction. The lights fade when Antumbra is not in use to conserve energy and reduce light pollution.
Supplied as two components
The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.
Environmental sensors
An internal light sensor measures ambient light and adjusts the wall-wash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the HVAC system.
Multiple language and icon labeling
Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.
Colour LCD
Allows for system information to be shown such as temperature, time, channel level and current scene. Button function can change when navigating between the up to 16 pages.
Selection of rim and fascia options
Different color finish options are available for the fascia and rim. These finishes can be mixed and matched to suit any decor requirement.
More User Interfaces
View all User Interfaces >

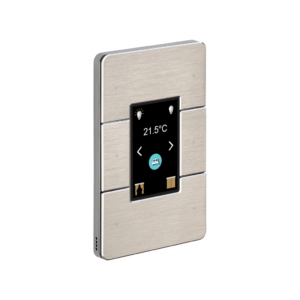

Antumbra Display
DADPA
The Antumbra Display presents multiple pages of functions and system information. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPA range is suitable for, but not limited to, North American, South American, Australian and New Zealand markets.

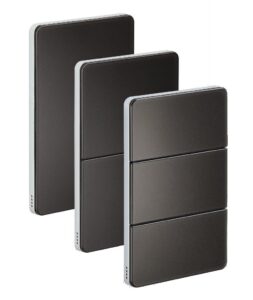

Antumbra Button
PAxBPA
The Antumbra Button user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPA, PA4BPA, and PA6BPA are suitable for but not limited to North American, South American, Australian and New Zealand markets.
Antumbra Button
PAxBPE
The Antumbra Button user interface features a sleek, contemporary design and incorporates the latest in field effect technology. Each easy-to-press mechanical button can be customized with text or icons and programmed to perform a wide variety of local and site-wide control functions. The PA2BPE, PA4BPE, and PA6BPE are suitable for but not limited to European, Middle Eastern, African and Asian markets.
