DACM-DINGUS-RJ12
5-way plug with 2 x RJ12 (top entry) designed for user interfaces. Same as DUS-DINGUS but with a Shield wire. Available at Qty 10 and 60.
DACM-DINGUS-RJ45
5-way plug with 2 x RJ45 (top entry) designed for user interfaces. Same as DUS-DINGUS but with a Shield wire. Available at Qty 10 and 40.

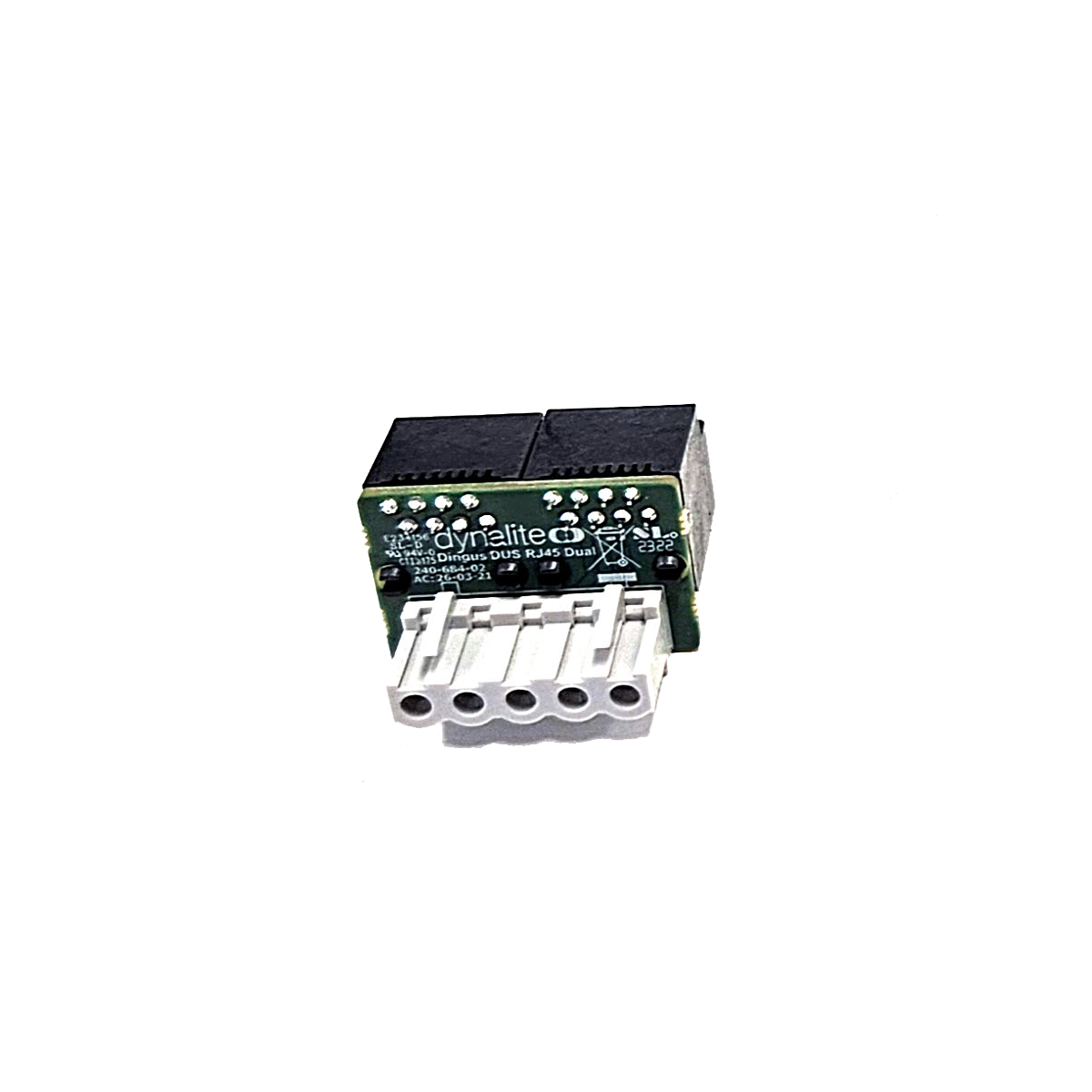

DUS-DINGUS-RJ45
5-way plug with 2 x RJ45 (top entry) designed for DyNet sensors. Available at Qty 10 and 60.

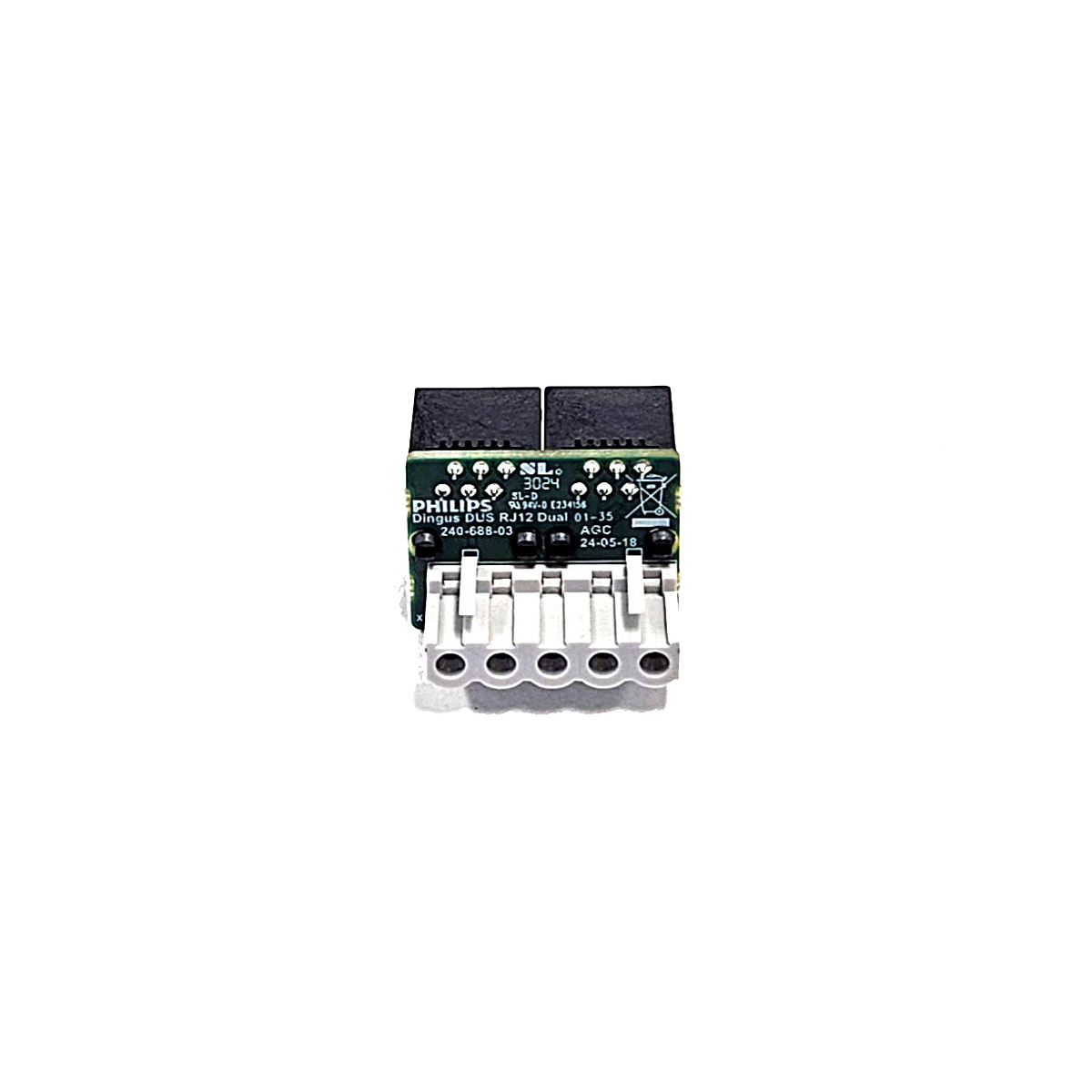

DUS-DINGUS-RJ12
5-way plug with 2 x RJ12 (top entry) designed for DyNet sensors. Available at Qty 10 and 60.
DINGUS-DMC-UL
5-way plug with 2 x RJ45 socket (side entry facing left) to connect to DCM-DyNet module in the DMC2 and DMC4 load controllers.

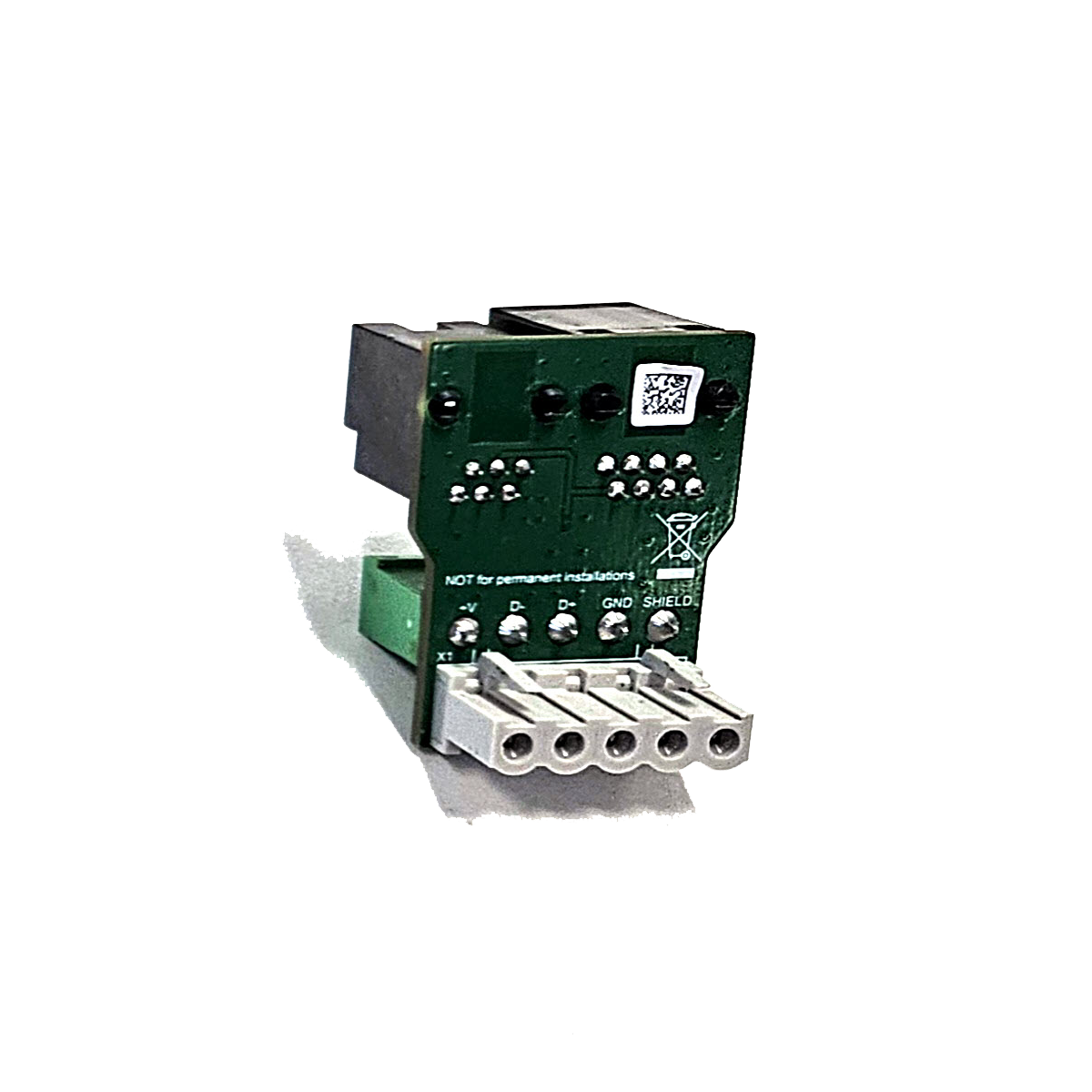

DINGUS-UI
5-way socket and plug with 1 x RJ45 and 1 x RJ12 socket. Inserted between the DACM and the PC Node. It enables RS-485 network continuity whilst providing commissioning access. Supplied with the PD-PCN (USB PC Node). Available at Qty 10.
