Antumbra Display

Contemporary button panel with LCD display

The Antumbra Display presents multiple pages of functions and system information. The contemporary design features a number of button configurations, with each button capable of local or site-wide control functions. The PADPE range is suitable for, but not limited to, European, Middle Eastern, African and Asian markets.

Read More

Key Features

Field effect technology

The user interface detects an approaching user and 'wakes up', initiating a wall-wash lighting effect to encourage interaction. The lights fade when Antumbra is not in use to conserve energy and reduce light pollution.

Supplied as two components

The Application Module contains buttons, rim, base and mounting plate, which can be mixed and matched to suit décor. The Communication Module contains all of the logical and network functions and is pre-programmed off-site, allowing commissioning to commence prior to finish options being finalized.

Environmental sensors

An internal light sensor measures ambient light and adjusts the wall-wash effect accordingly. A built-in temperature sensor automatically adjusts air conditioning when integrated into the HVAC system.

Multiple language and icon labeling

Display labeling language choices include English, Chinese and Arabic. A library of common icons transcends language barriers, which is particularly useful in hospitality applications. Button labeling not available.

Dynamic LCD

Allows for system information to be shown such as temperature, time, channel level and current scene. Button function can change when navigating between the up to 16 pages.

Selection of rim and fascia options

Different color finish options are available for the fascia and rim. These finishes can be mixed and matched to suit any decor requirement.

Product Guides & Documentation

PADPE Installation Instructions PADPE Installation Instructions
PADPE Installation Instructions

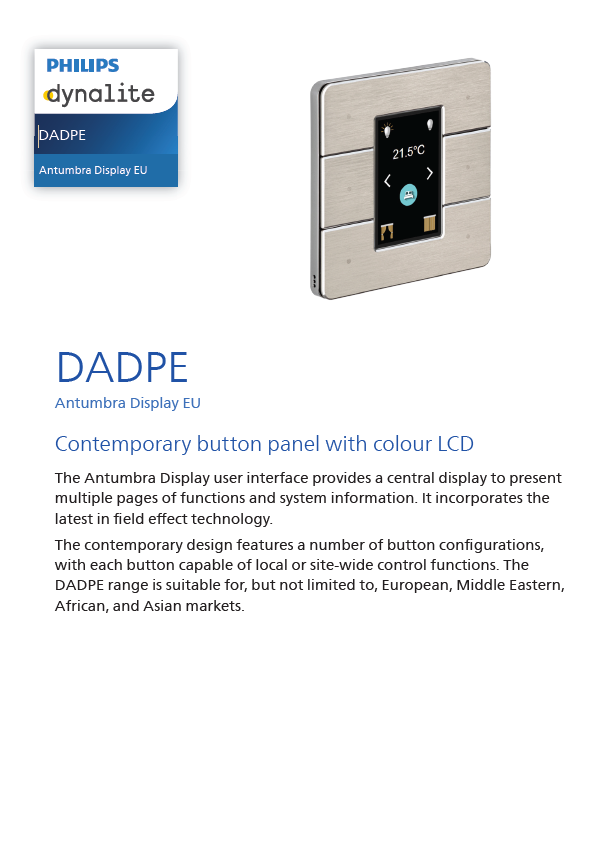

PADPE Spec Sheet PADPE Spec Sheet
PADPE Spec Sheet
User Interfaces (EU) User Interfaces (EU)
User Interfaces (EU)
CE
PADP EU Declaration of Conformity
UKCA
PADPx UKCA Declaration of Conformity
CAD
PADPE AutoCAD Drawing
