RS-485/DMX512 Gateway

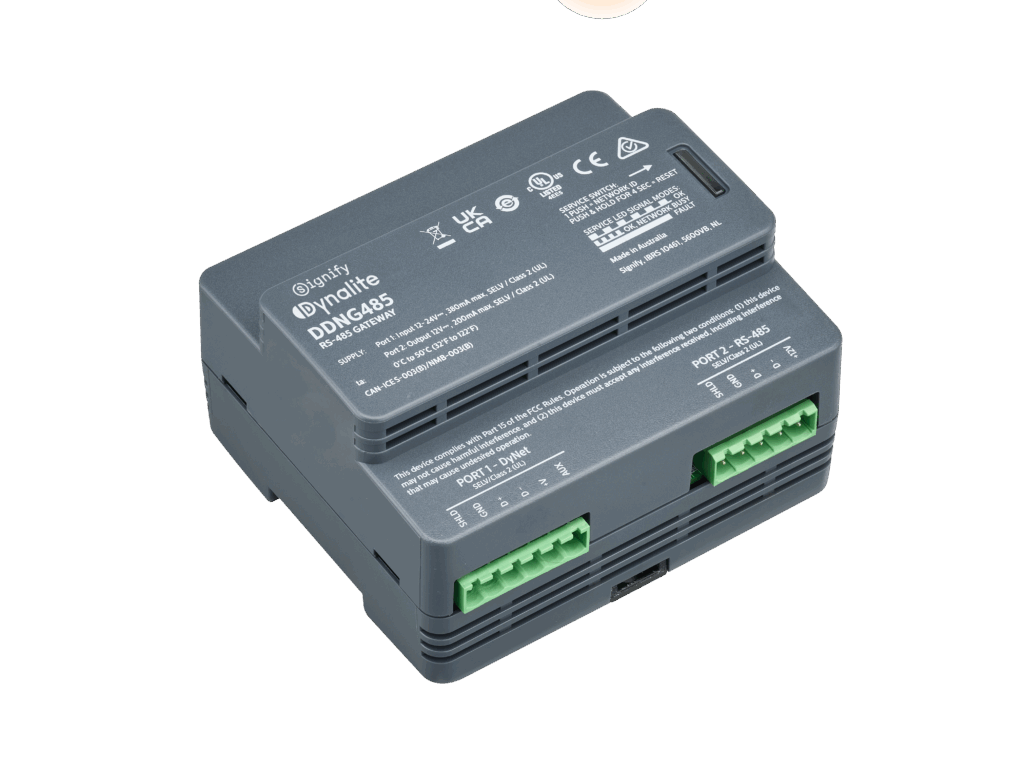

DDNG485
RS-485/DMX512 Gateway
Flexible network communications gateway
The Philips Dynalite DDNG485 is a flexible network communications bridge designed for RS-485 networks. The two opto-isolated RS-485 ports enable the DDNG485 to implement a trunk and spur topology on large project sites, with the bridge providing a high-speed backbone opto-coupled to many lower speed spurs.
Key Features
Route DyNet to third-party systems
Such as audio-visual, Modbus meters, and building automation systems, providing an integrated approach to total building control and energy management.
DMX512 mode
Transmit or receive up to 512 channels of DMX with automatic DyNet conversion and task triggering. Provides temporary control of house lights from the DMX console in an auditorium scenario.
Electrical fault isolation
Faults can be isolated to individual network spurs.
Internal controls
Programmable logic controller capable of comprehensive conditional and sequential logic and arithmetic function processing, packet filtering, and DyNet to DyNet 2 translation.
Flexible mounting solution
DIN rail mountable, designed to be installed into a distribution board or other electrical enclosure.
